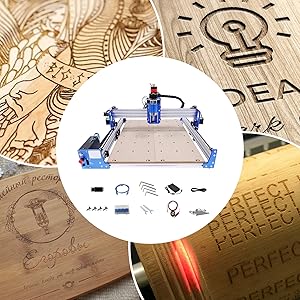

CNC Router Machine Kit 4040 Engraving Milling Machine 100W USB CNC Engraving Machine for Industrial Advertising Arts and Crafts DIY Design Carving Plastic Wood
Price: $479.00
(as of Aug 25, 2024 19:47:16 UTC – Details)
Product Description
4040 CNC Engraving Machine Kit Pro Milling Machine 100W USB CNC Router Machine
Accurate engraving is not possible without an engraving machine. The aluminum frame engraving machine is more durable, stronger, and has a long service life. The engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient. With an effective engraving area of 400 x 400 x 83mm, the machine can easily accommodate most projects. The engraving machine with an aluminum frame and wood panel workbench is corrosion-resistant and strong, having a long service life.
Good Control Performance
The 42 two-phase stepper motor has good control performance. The starting, stopping, and flipping are done within a few pulses. Also, the machine is equipped with limits in several directions to prevent accidental touching of the edges and to reduce damage to the machine.
DIY
The mini DIY engraving machine can be used to make gifts for your friends and exercise your hands-on skills. It can make you experience the joy of DIY by completing your sculptures.
Application
CNC router machine kit is suitable for industrial technology, advertising design, art, educational programs, amateurs, architectural models, printed circuit boards, etc. It is suitable for engraving plastic and wood.

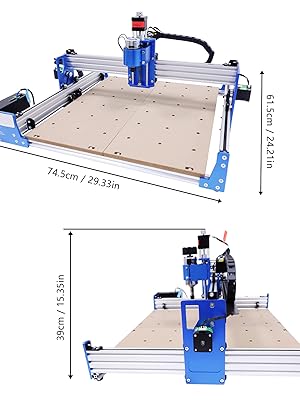

Product Size: 74.5*61.5*39cm/29.33*24.21*15.35inch
Package Size: 67*39*29cm/26.38*15.35*11.42inch

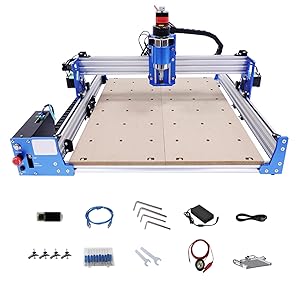

Package Included: 1 Set x Carving Bit, 1 x Z Probe, 1 x Right-Y-axis, 1 x U Disk, 1 x USB , 1 x Power Supply, 1 x Power Cable, 4 x Clamps, 1 x Manual, Other Accessories for Installation
Color: Blue, Silver Material: Aluminum, Wood Drive Power: 12V 5A Spindle Power: 75W Voltage: 110V Power: 100W Workbench Size: 23.62×20.47inch Gross Weight: 12kg/26.46lbs
4040 CNC Engraving Milling Machine 100W USB for Industrial Advertising Arts
Specification:
Maximum Workpiece Thickness: 3.07inch
Effective Stroke: 15.75 x 15.75x 3.27inch
Spindle Accuracy: Radial Runout ≤ 0.05mm

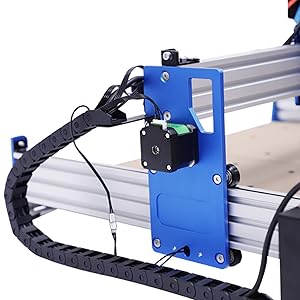

Stepper Motor: 42 Two-phase Stepper Motor
Rotation Speed: 6000rpm; Spindle Speed: 0-10000rpm
Acceptable Software: GRBL/Candle
Communication Interface: USB
Engraving Speed: 50-1500mm/min (Depending on the Material Speed Setting)

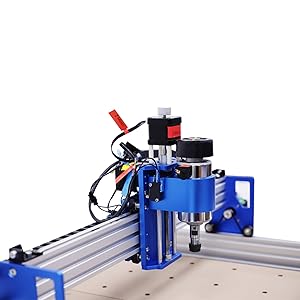

Standard Spindle: 42mm High-Speed Spindle/ER11 Chuck/3.175mm Clamping Centre
Easy to Operate: The machine has clearly displayed function buttons and we have provided a manual to enable you to use the machine quickly. Emergency Stop Button: You can press the emergency stop button to protect the machine when it is affected or when it is working erratically. It can’t be used to carve hard metals, jade, or other hard objects.
High Accuracy
The engraving machines with industrial-grade chips have precise calculations and can achieve precise engraving of ≤ 0.05mm/0.001inch.
Stable Operation
The spindle motor with an air cooling system cools the machine, making it stable, reliable, and durable.

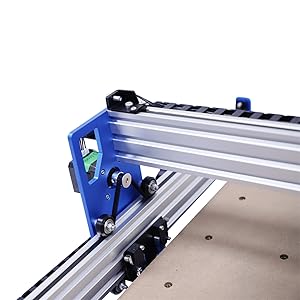

Straight Square Rails
The straight square rails allow the bearings to work for long periods without affecting performance.
[High Efficiency] – The engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient. With an effective engraving area of 400 x 400 x 83mm, the machine can easily accommodate most projects.
[High Accuracy] – The CNC router machines with industrial-grade chips have precise calculations and can achieve precise engraving of ≤ 0.05mm/0.001inch. The spindle motor with an air cooling system cools the machine, making it stable, reliable, and durable.
[Good Control Performance] – The 42 two-phase stepper motor has good control performance. The starting, stopping, and flipping are done within a few pulses. Also, the machine is equipped with limits in several directions to prevent accidental touching of the edges and to reduce damage to the machine.
[Application] – 4040 CNC engraving machine kit is suitable for industrial technology, advertising design, art, educational programs, amateurs, architectural models, printed circuit boards, etc. It is suitable for engraving plastic and wood.
[Best Service] – If you have any questions, please contact us. We will reply your within 24 hours.
